Die Clamps are used for holding dies in processing machine platens and are available in two different types with the following sizes in our range.
| Clamp Type | Bolt Size | Length |
| Boat | 12mm | 100mm |
| 16mm | 125mm | |
| 20mm | 160mm | |
| 25mm | 200mm | |
| Slotted | 12mm | 100mm |
| 16mm | 150mm | |
| 20mm | 200mm | |
| 25mm | 250mm | |
| Toggle | 16mm | 120mm |
| 20mm | 150mm |

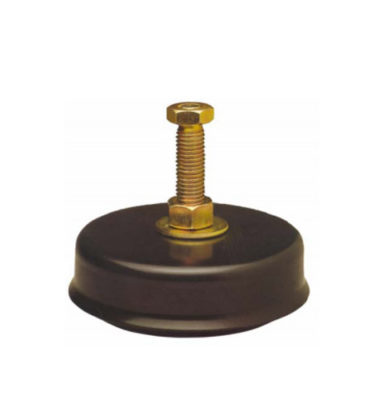

Our machine level pads are designed to remove machine vibration during running and to level the machine to the horizontal. This creates an environment that gives your machine accuracy, long life, reduction of operator fatigue and reduction of noise.
They are made of powder coated steel with neoprene feet which are resistant to factory processing oils and heat.
| Model | Load Capacity | Pad Diameter | Bolt Diameter |
| LP1 | 0-400kg | 104mm | 12mm |
| LP2 | 400-1000kg | 145mm | 18mm |
| LP3 | 1000-2000kg | 195mm | 18mm |
| LP4 | 2000-3000kg | 228mm | 24mm |
| LP5 | 3000-5000kg | 250mm | 30mm |
Yann Bang Die Temperature Controllers are used to keep dies at a constant temperature allowing more accurate mouldings to be made and to mould at a quicker rate. They come in a range of sizes from 6kW to 48kW of heating, and a temperature range of up to 200°C and have either direct or indirect cooling. They come in water and oil models, they are all mounted on wheels and have manifolds with taps for ease of die connection.
| YB Oil Models | YBMI-150-05 | YBMI-200-10 | YBMI-200-20 | YBMI-200-30 | YBMI-260-10 | YBMI-260-20 | YBMI-260-30 | YBMI-260-50 |
| Max Temp (C) | 100 | 200 | 200 | 200 | 260 | 260 | 260 | 260 |
| Heater (KW) | 6×1 | 10×1 | 10×2 | 13×2 | 7×2 | 13×2 | 17×2 | 24×2 |
| Flow Rate (L/min) | 40 | 60 | 80 | 160 | 70 | 120 | 180 | 280 |
| YB Water Models | YBMD100-05 | YBMD120-10 | YBMD120-20 | YBMD120-30 | YBMD120-50 | YBMD150-05 | YBMD150-10 | YBMD150-20 | YBMD180-10 |
| Max Temp (C) | 100 | 120 | 120 | 120 | 120 | 150 | 150 | 150 | 180 |
| Heater (KW) | 6×1 | 8×1 | 8×2 | 10×2 | 16×2 | 7×1 | 7×1 | 8×2 | 9×1 |
| Flow Rate (L/min) | 40 | 80 | 120 | 160 | 200 | 60 | 60 | 65 | 60 |

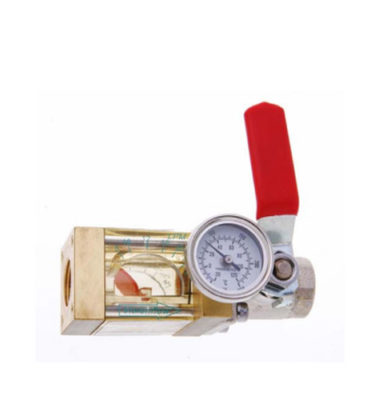

ONDA Visionflow Water Meters are compact (108mm long) Water Regulators that can be installed on important water lines to show the exact flow rate. They can incorporate Temperature and Pressure gauges also if required. Their advantage is their Compact Size and ease of installation on any water pipe application.
Castle Chiller Specs April 2019
| Water Cooled | Air Cooled | |||||||||
| Specs | W-05N | W-10N | W-15N | W-20N | A-03N | A-05N | A-10N | A-15N | A-20N | |
| Cooling
Capacity |
KCAL/h | 12900 | 25800 | 38700 | 51600 | 7740 | 12900 | 25800 | 38700 | 51600 |
| BTU/h | 50650 | 101300 | 154000 | 202600 | 30186 | 50650 | 101300 | 152000 | 202600 | |
| Chiller | Power KW | 3.7 | 7.5 | 11 | 15 | 2.2 | 3.7 | 7.5 | 11 | 15 |
| Power A | 7 | 16 | 18 | 22 | 11 | 7 | 16 | 17 | 33 | |
| Compressor | KW | 3 | 7 | 11 | 15 | 2.2 | 3.7 | 7 | 10 | 13 |
| HP | 5 | 10 | 15 | 20 | 3 | 5 | 11 | 15 | 22 | |
| V | 3 Phase 415V | 3 Phase 415V | 3 Phase 415V | 3 Phase 415V | 3 Phase 415V | 3 Phase 415V | 3 Phase 415V | 3 Phase 415V | 3 Phase 415V | |
| Pump Flow Rate | L/min | 90 | 180 | 270 | 400 | 60 | 100 | 250 | 270 | 270 |
| Pump Power | KW | 0.75 | 1.5 | 2.2 | 3 | 0.4 | 0.75 | 1.5 | 2.2 | 2.2 |
| Water Tank | L | 110 | 180 | 270 | 270 | 60 | 90 | 180 | 270 | 270 |
| Inlet Pipe Diameter | Inch | 1 | 1.5 | 2 | 2.5 | |||||
| Outlet Pipe Diameter | Inch | 1 | 1.5 | 2 | 2.5 | |||||
| Condenser Flow Rate | L/min | 110 | 210 | 350 | 350 | |||||
| Fan Power | KW | .2 | .25 | .25×2 | .55×2 | 1.1×2 | ||||
| Unit Height | Mm | 980 | 1150 | 1400 | 1700 | 750 | 1100 | 1120 | 2100 | 2100 |
| Unit Width | Mm | 670 | 710 | 820 | 950 | 680 | 680 | 790 | 1000 | 1320 |
| Length | Mm | 840 | 1550 | 1660 | 1800 | 900 | 1100 | 1450 | 2200 | 2200 |
| Weight | Kg | 160 | 300 | 460 | 600 | 100 | 160 | 300 | 700 | 750 |
| Mold Lock Capacity |
T |
-300 |
-600 |
-850 |
-1650 |
-50 |
-300 |
-600 |
-850 |
-1650 |
