These YANN BANG Pneumatic Proportional Valves can be installed on any vacuum hopper loader to mix and load two materials at once in the percentages required. They are stainless steel and come with stainless steel probe and hose for easy installation. They are available in two sizes 38mm and 50mm hose sizes.
ONDA Visionflow Water Meters are compact (108mm long) Water Regulators that can be installed on important water lines to show the exact flow rate. They can incorporate Temperature and Pressure gauges also if required. Their advantage is their Compact Size and ease of installation on any water pipe application.
Our Analytical Sieve is simply operated with easy maintenance. It has a Machined Base & Stainless Body. 8 Layers of screens (normally between 150-710 microns). It can be used for any powder, liquid or grain material. It is noiseless and comes with a built in timing device and indicating lamp.
German Company GWK are one of the worlds most famous Die temperature Controller manufacturers and are the preferred supplier of many of Europe’s most famous processing machinery manufacturers. They come in sizes from 3kW to 300 kW of heating and a temperature range of up to 350°C.
GWK models are very sophisticated yet very user friendly, the controllers can be interfaced using any of the current interfaces with the processing machines controller.
Typical units used in the plastics industry are:
GWK CS90 9kw heating to 90°C.
GWK CS140 9kW heating to 140°C.
All models come with ‘leakstop’
| Model | CS90 | CS140 |
| Medium | Water | Water |
| Temperature max (C) | 95 | 140 |
| Pump capacity max (l/min/bar) | 60/3.8 | 60/6 |
| Heating capacity (kw) | 9 | 9 |
| Cooling | Indirect | Indirect |
| Cooling capacity (kw/kcal/hr) | 23/20,000 | 40/34,400 |
| Weight (kg) | 44 | 50 |
| Robust stainless steel housing with painted side panels | Yes | Yes |
| Automatic filling and top up device | Yes | Yes |
| Strainer in cooling water inlet | Yes | Yes |
| Durable rubber coated castors | Yes | Yes |
| All contact parts made of non-corrosive materials | Yes | Yes |
| Continuous heater control | Yes | Yes |
| Acoustic alarm | Yes | Yes |
| Additional manual filling operation for treated water | Yes | Yes |
| Leak stop operation | Yes | Yes |
| Mould draining facility | Yes | Yes |
| Magnetically couples pump | – | – |
| Integrated to up pump | – | – |
| Mould circuit supply and return connections | G1/2″ | G1/2″ |
| Cooling water supply and return connections | G1/4″ | G1/4″ |
| Dimensions of housing (LxWxH) | 680x250x595 | 680x250x595 |

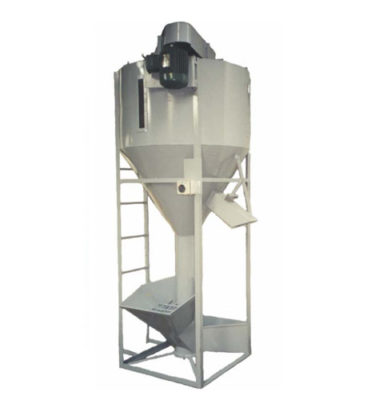

These mixers are designed to mix large quantities of resins or like products very quickly. They can be easily fed with the initial ingredients via the inlet hopper (580mm high) and the mixed product can be easily removed from the mixer via the outlet chute (1160mm high) into drums, bags etc… They can be used in a continuous manner and do not have to be batch mixed or emptied before starting the next mix and can be drawn from during the mix cycle.
| Model | 300 | 600 | 1000 | 2000 |
| Capacity | 300 | 600 | 1000 | 2000 |
| Horsepower | 2 | 5 | 5 | 7.5 |
| Base dimension (mm) | 900-900 | 1000-1000 | 1000-1000 | 1150-1150 |
| Height overall (mm) | 2660 | 2900 | 3350 | 4000 |
| Chamber diameter (mm) | 1060 | 1370 | 1370 | 1525 |
| Height bagging chute (mm) | 1160 | 1160 | 1160 | 1160 |
| Height inlet hopper (mm) | 580 | 580 | 580 | 580 |
| Auger diameter (mm) | 180 | 230 | 255 | 330 |
| Bagging chute size (mm) | 200×200 | 200×200 | 200×200 | 200×200 |
