Dehumidifier Dryers

Category: Tags: , , , , , , ,

Product Description

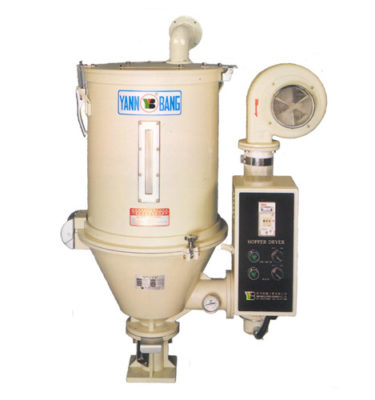

Yann Bang Dehumidifier Dryers use a rotating desiccant multi cannister system that takes all spikes out of the airflow giving dry air better than -40°C and generally around -50°C. They come in all sizes from 100m³/Hr to 1750m³/Hr and are able to dry for example 1000kg of PET per hour.  MADE IN TAIWAN

View Specs

DHC60 DHC80 DHC100 DHC200 DHC400 DHC600 DHC700 DHC800
Air flow m3 hr 50 80 100 180 300 450 580 730
Heater KW 3 3.8 3.8 7.8 9 9 13 18
Blower KW .5 1 1 2.5 3.5 5 7.5 10
Dimensions LxWxH  69x60x140  69x60x140  69x60x140  69x60x160  87x87x198  87x87x198 125x125x236 125x125x236

Reviews

There are no reviews yet.

Be the first to review “Dehumidifier Dryers”

Your email address will not be published. Required fields are marked *

Related products

  • Tensile Strength Test

    Tensile Strength Testing Machine is used to check the tensile strength of materials and complies with all international measuring standards.

    Tensile strength Test Machines, Flexural Modulus Test machines etc and all laboratory test equipment is available.

  • Hopper Magnets

    These are essential to have installed to every plastics processing machine feed hopper to remove any ferrous metal contamination that can damage screws, barrels and dies.

    They come in different sizes from 5″ to 11″ to suit all types and sizes of hoppers.

    View specs

    Model L (mm) W (mm) H (mm) Type
    5″ Round 120 112 90 Round type – 5 bars
    5″ Square 120 112 90 Square type – 5 bars
    7″ Round 180 175 75 Round type – 7 bars
    7″ Square 180 175 75 Square type – 7 bars
    8″ Round 185 163 32 Round type – 4 bars
    9″ Round 230 218 75 Round type – 9 bars
    9″ Square 230 218 75 Square type – 9 bars
    11″ Round 265 265 75 Round type – 11 bars
  • Loading

    Hopper Loaders

    Yann Bang Hopper Loaders are vacuum type hopper loaders that will feed resin from 1kg/Hr – 2000kg/Hr.They all have stainless steel hoppers and are easily mounted on any hopper or directly on to processing machines.

    They can have the blower hopper mounted or floor mounted where weight or height is a problem. With the floor mounted type there are small 2kg hoppers to 50kg hoppers and glass hoppers also.

    Most models are supplied with paper filter cartridges to make them dust free. All come with hoses, stainless steel probes and electrical plugs. See below for model specifications.

    View specs

    Model BCE-4 BCE-4F BLE6 TBE-4 TAE-6 TAE-10 TAE-14
    Mounted Hopper Hopper Hopper Floor Floor Floor Floor
    Conveying Capacity (kg/hr) 400 400 450 400 450 800 1500
    Conveying Height (m) 4 4 4 4 4 9.5 13
    Conveying Length (m) 7.5 7.5 8 7.5 8 30 75
    Motor 800W 1phase 800W 1phase 1HP 3phase 800W 1phase 1HP 3phase 3HP 3phase 7.5HP 3phase
    Power 240V 240V 415V 240V 415V 415V 415V
    Approx Weight (KG) 16 16 45 13 49.5 76 148
    Hopper Capacity 12 12 12 6 6 12 50
  • Accessories

    Die Clamps

    Die Clamps are used for holding dies in processing machine platens and are available in two different types with the following sizes in our range.

    View specs

    Clamp Type Bolt Size Length
    Boat 12mm 100mm
    16mm 125mm
    20mm 160mm
    25mm 200mm
    Slotted 12mm 100mm
    16mm 150mm
    20mm 200mm
    25mm 250mm
    Toggle 16mm 120mm
    20mm 150mm
