Product Description
Yann bang hopper dryer stands are available for all model hopper dryers and are on wheels to enable the hopper dryer mounted on the stand to be moved with ease.
Yann bang hopper dryer stands are available for all model hopper dryers and are on wheels to enable the hopper dryer mounted on the stand to be moved with ease.
Yann Bang Dryer Magnet Bases are available for all model hopper dryers and allow magnets to be installed at the base of the hopper dryers in a sight glass where the state of the magnet can be viewed and removed for cleaning if necessary without upsetting the drying process.

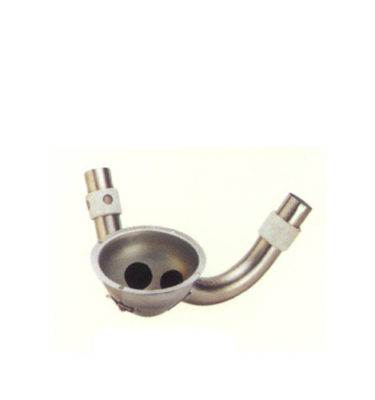

Yann Bang Dryer Suction Bases are available for all model hopper dryers and enable the dried resin from the hopper dryer to be loaded directly into the plastics processing machine from a hopper dryer mounted on a dryer mobile stand
Yann Bang Hopper Dryers are available in sizes from 12kg to 1200kg capacity. The hoppers are all stainless steel and have shut off valves, dump chutes and sight glasses. They are all designed to take any Yann Bang hopper loader without any drilling or fitting required. MADE IN TAIWAN.
Model | Capacity | Height | Width | Depth | Base Diameter | Heater |
HD12 | 28.12 | 796 | 619 | 335 | 1202 | 2kw |
HD25 | 52.60 | 1005 | 696 | 418 | 1602 | 3kw |
HD50 | 92.21 | 1145 | 797 | 492 | 1602 | 3.85kw |
HD100 | 202.34 | 1415 | 1021 | 432 | 2252 | 7kw |
HD200 | 372.66 | 1610 | 1149 | 775 | 2252 | 11kw |
HD400 | 665.81 | 2006 | 1149 | 945 | 3202 | 20kw |
HD600 | 804.84 | 2251 | 1450 | 945 | 3202 | 20kw |
Yann Bang Dehumidifier Dryers use a rotating desiccant multi cannister system that takes all spikes out of the airflow giving dry air better than -40°C and generally around -50°C. They come in all sizes from 100m³/Hr to 1750m³/Hr and are able to dry for example 1000kg of PET per hour. MADE IN TAIWAN
View Specs
DHC60 | DHC80 | DHC100 | DHC200 | DHC400 | DHC600 | DHC700 | DHC800 | |
Air flow m3 hr | 50 | 80 | 100 | 180 | 300 | 450 | 580 | 730 |
Heater KW | 3 | 3.8 | 3.8 | 7.8 | 9 | 9 | 13 | 18 |
Blower KW | .5 | 1 | 1 | 2.5 | 3.5 | 5 | 7.5 | 10 |
Dimensions LxWxH | 69x60x140 | 69x60x140 | 69x60x140 | 69x60x160 | 87x87x198 | 87x87x198 | 125x125x236 | 125x125x236 |
